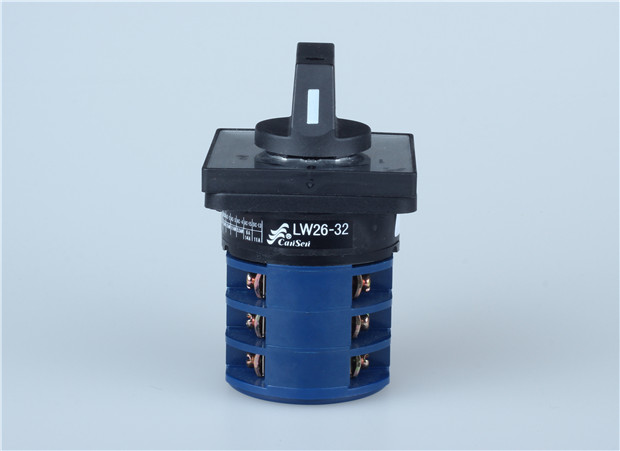

CHANGEOVER SWITCH LW26-32 1-0-2 3P Panel Mount
Two-position switch with “OFF” position used in control applications to change between alternate power supplies. This device can typically be used to manually switch power supplies from a primary source to a stand-by/emergency supply in the event of a power outage.
online service
CHANGEOVER SWITCH LW26-32 1-0-2 3P Panel Mount
Two-position switch with “OFF” position used in control applications to change between alternate power supplies. This device can typically be used to manually switch power supplies from a primary source to a stand-by/emergency supply in the event of a power outage.
Rotary Cam Switch, Changeover Switch, Three Position Switch, Manual change over switch, Transfer Switch
Kraus&Naimer/ Salzer/Bramas Switch/ Breter Switch/ Blue Line
|
Specification |
LW26-32 |
|
|
|
||
|
LW26-32F |
||
|
Rated insulation voltage Ui V |
660/690 |
|
|
Rated thermal current Ith A |
32 |
|
|
Rated working voltage Ue V |
240 |
440 |
|
Rated working current Ie |
|
|
|
AC-21A |
32 |
32 |
|
AC-23A |
30 |
30 |
|
AC-2 |
30 |
30 |
|
AC-3 |
22 |
22 |
|
AC-4 |
11 |
11 |
|
AC-15 |
14 |
6 |
|
DC-13 |
|
|
|
Power |
|
|
|
AC-23A KW |
7.5/4 |
15/7.5 |
|
AC-2 KW |
7.5 |
15 |
|
AC-3 KW |
5.5/4 |
11/5.5 |
|
AC-4 KW |
2.7/1.5 |
5.5/3 |
