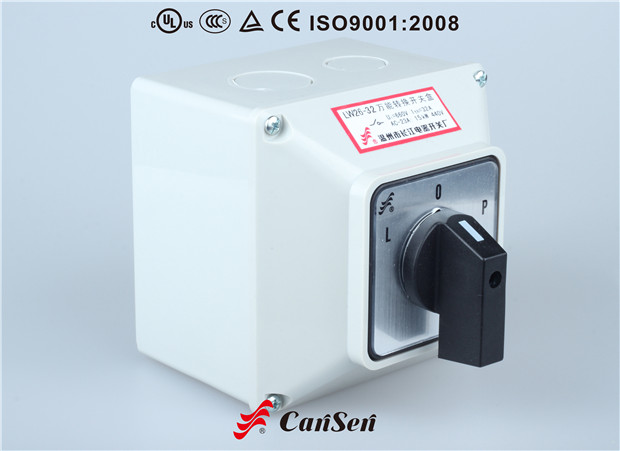

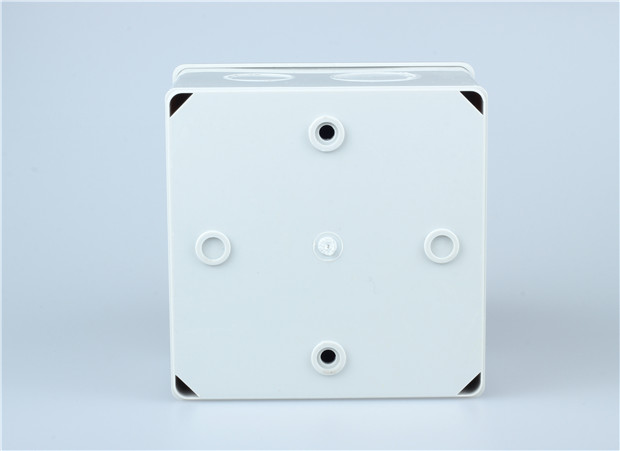

MOTOR SWITCH LW26-32 L-O-P IP65 box mount

Three-phase, three-position (Forward-Off-Reverse/ L-O-P) switch used to manually control a motor’s direction of rotation. Operating the switch changes the wiring configuration of the motor to operate in the forward or reverse direction.

online service

Tel:0086-577-62787525

Email: davychen@cansen.com

Skype: cansenswitch

Fax: 0086-577-62760995

MOTOR SWITCH LW26-32 L-O-P IP65 box mount

Three-phase, three-position (Forward-Off-Reverse/ L-O-P) switch used to manually control a motor’s direction of rotation. Operating the switch changes the wiring configuration of the motor to operate in the forward or reverse direction.

Motor Switch, Motor reversing switch, motor control switch, Star Delta switch, start and run switch, forward off reverse switch, Rotary Cam Switch
Kraus&Naimer/ Salzer/Bramas Switch/ Breter Switch/ Blue Line

Specification

LW26-32


LW26-32F

Rated insulation voltage Ui V

660/690

Rated thermal current Ith A

32

Rated working voltage Ue V

240

440

Rated working current Ie



AC-21A

32

32

AC-23A

30

30

AC-2

30

30

AC-3

22

22

AC-4

11

11

AC-15

14

6

DC-13



Power



AC-23A KW

7.5/4

15/7.5

AC-2   KW

7.5

15

AC-3   KW

5.5/4

11/5.5

AC-4   KW

2.7/1.5

5.5/3
